1080P camera probe
A 70-degree viewing angle provides a live view in confined spaces. Image quality depends on lighting, distance and the condition of the lens.
EVOQUEFIT • PRACTICAL TOOLS
See into tight spaces on a dedicated screen.
Inspect accessible areas inside pipework, machinery and other hard-to-see spaces using an 8.5 mm camera probe and an integrated 4.3-inch display. Choose the cable length for the access route you need, guide the probe slowly and check the live view as you go.
Live view only — no photo or video recording
LIVE VIEW ONLY: This device does not support photo capture or video recording. Do not force the cable through a bend. This is an inspection aid, not a medical device or a substitute for professional diagnosis.
Built around your next project
Integrated 4.3-inch display
View the inspection on the handheld screen. This model is for live viewing only and does not take photos or record video.

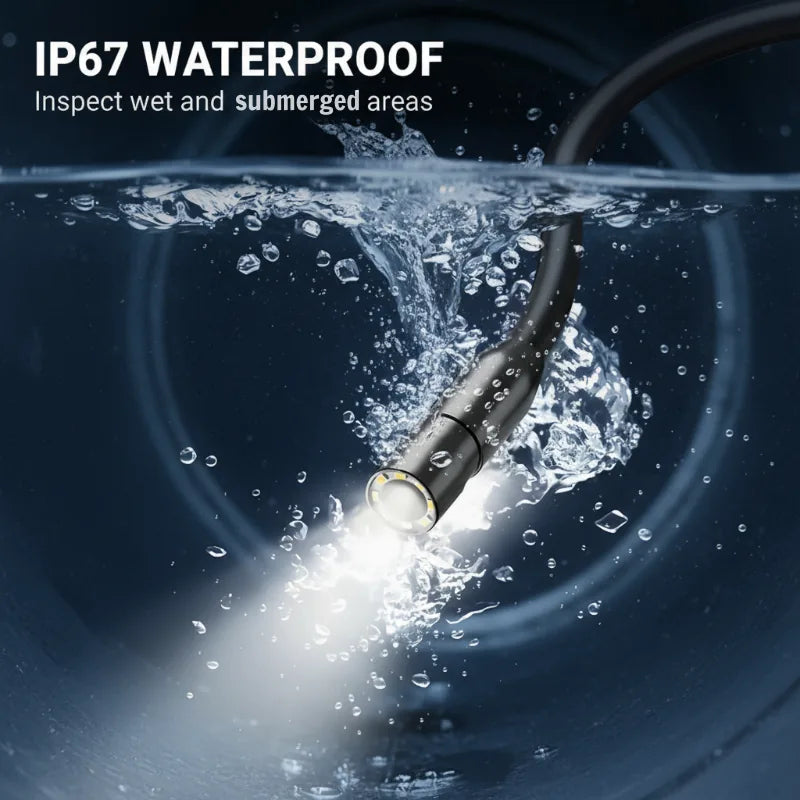

IP67-rated probe
The camera probe is specified as IP67. Keep the display, charging port and connections dry; follow the supplied limits for wet-area use.
Choose your reach
Select a 1 m, 5 m or 10 m cord. Cable length is the supplied reach, not a guarantee that the probe can negotiate every bend.
GET STARTED
A clear setup in four steps
- Charge the device via USB-C and choose an accessible inspection opening.
- Check that the 8.5 mm probe and cable can enter without being forced.
- Power on, guide the probe slowly and adjust the viewing mode or zoom as needed.
- Withdraw carefully, clean the probe as directed and dry it before storage.
Details before you choose
| Display | 4.3 inches |
|---|---|
| Camera resolution | 1080P |
| Probe diameter | 8.5 mm |
| Viewing angle | 70 degrees |
| Probe rating | IP67; display and charging port must stay dry |
| Charging input | USB-C; DC 5 V / 1 A |
| Cable options | 1 m / 5 m / 10 m |
| Photo / video recording | Not supported — live view only |
PUT IT TO WORK

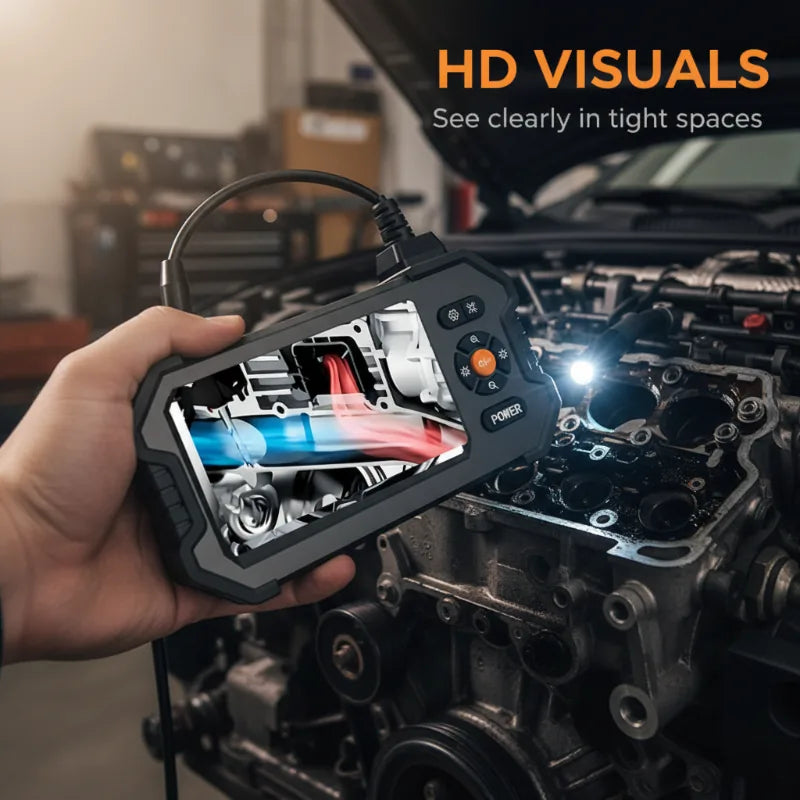

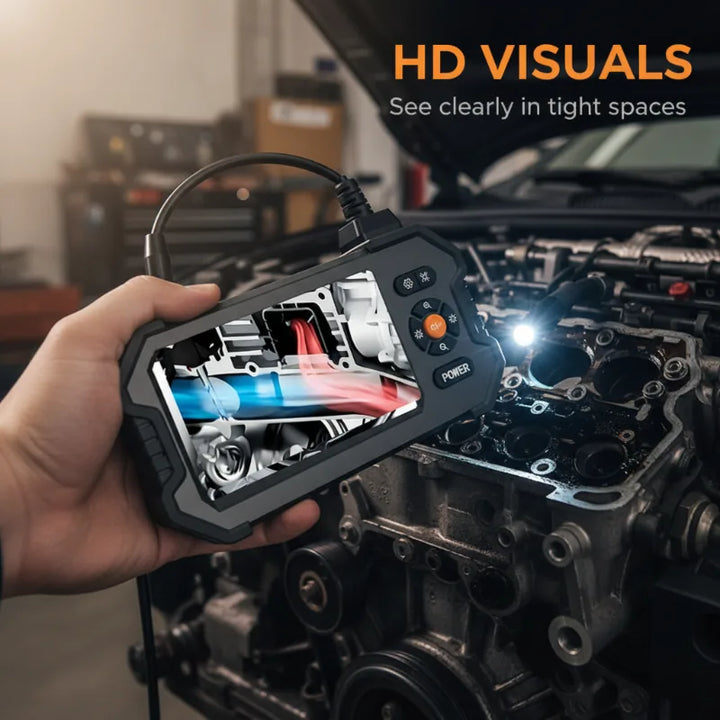

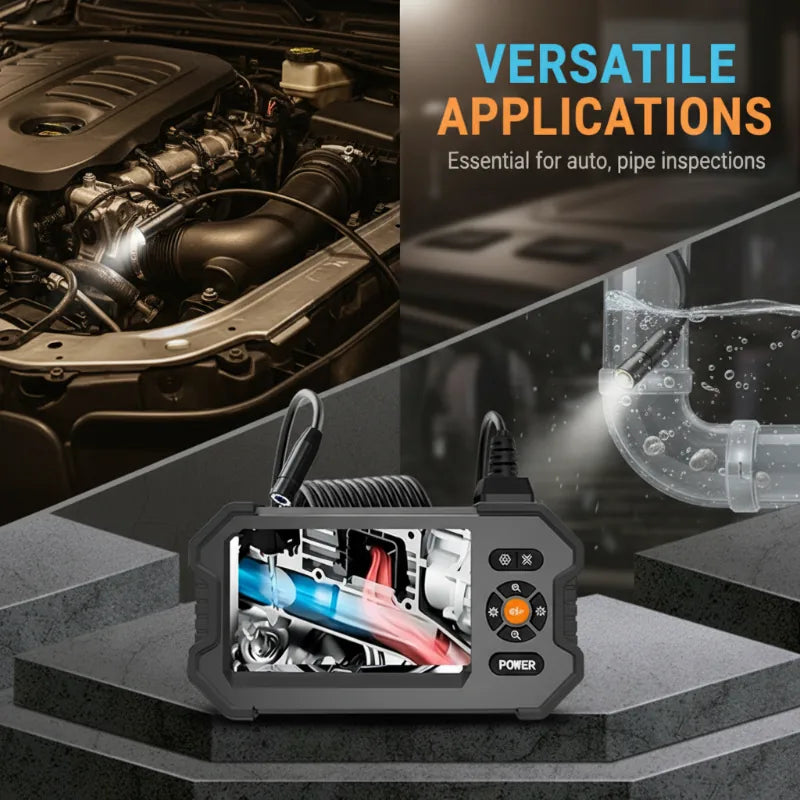

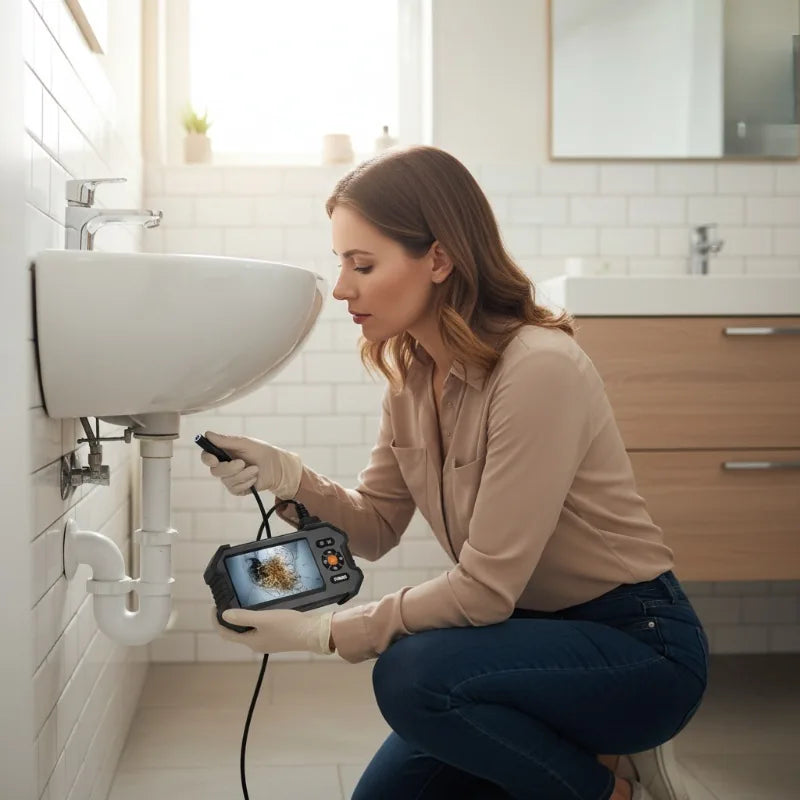

For practical plumbing, automotive and workshop inspections
Use the live view to look for visible obstructions, loose items or surface conditions in accessible spaces. Let engines cool and isolate machinery before inspecting. Never insert the probe into moving equipment, live electrical assemblies or the body.
Application images illustrate use; demonstration objects are not included.
WHAT YOU RECEIVE
Check the kit contents

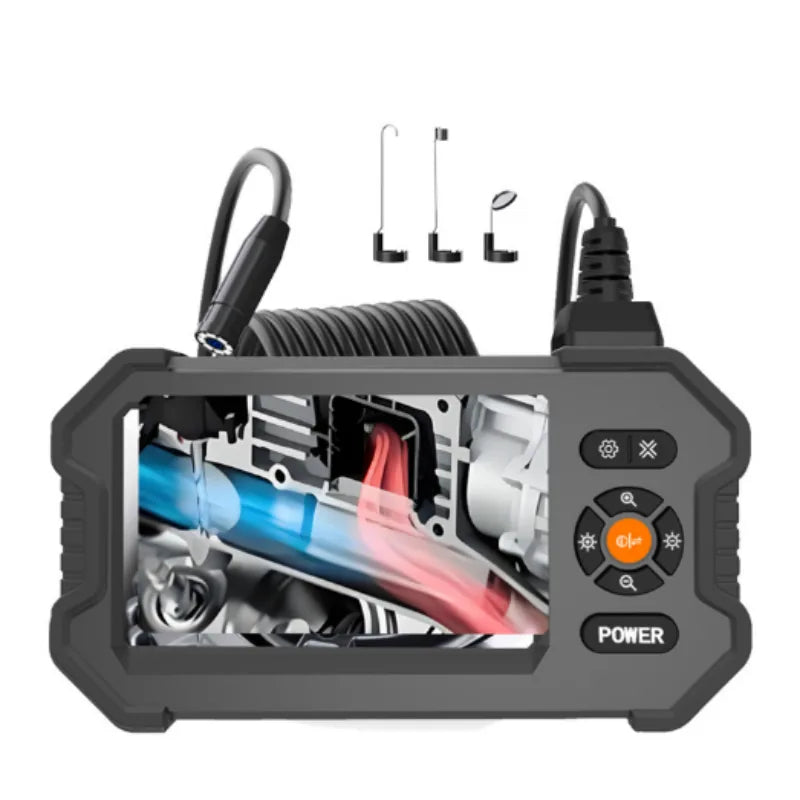

One portable inspection camera with an integrated 4.3-inch screen and the selected cable length. Vehicles, pipes, workshop tools and other demonstration objects are not included.
Questions before you start
Does it record video or save photos?
No. This model displays a live inspection view only. It has no photo or video recording function.
Which cable length should I choose?
Measure the access route and allow room to handle the cable. Available lengths are 1 m, 5 m and 10 m; tight bends may limit usable reach.
Is the whole unit waterproof?
No. The IP67 specification applies to the camera probe. Keep the screen unit, charging interface and connections dry.
Will the probe fit every pipe or engine opening?
No. Check the 8.5 mm probe diameter, access opening and bend geometry. Stop if the probe catches or requires force.
How should I power and store it?
Use a suitable 5 V / 1 A USB-C supply. Charge before use, clean and dry the probe after inspection, and store the cable without tight kinks.
