35mm cup guidance
Designed around the 35mm cup size used by many European-style concealed hinges. Check the actual cup diameter before choosing the jig.
EVOQUEFIT • WORKSHOP ESSENTIALS
Guide the cup hole and screw positions for a cabinet hinge.
Check door thickness, cup depth and backset against your actual hinge instructions. Not every hinge uses the same drilling pattern.
DESIGNED AROUND THE TASK
One clamped reference for a concealed cabinet hinge
A concealed hinge needs a cup recess and mounting-screw positions that agree with the hinge geometry. This jig brings those drilling references into a single clamped setup. It helps organize the sequence: position the jig, set the cutter, drill the cup and guide holes, then check the hinge fit.
Keep the screw pattern aligned
Use the two screw guides while the jig remains clamped. Confirm the hole spacing matches your hinge before drilling.
Work with a hand drill
The setup uses a compatible hand drill. Secure the door on a stable work surface so both the panel and jig stay supported.

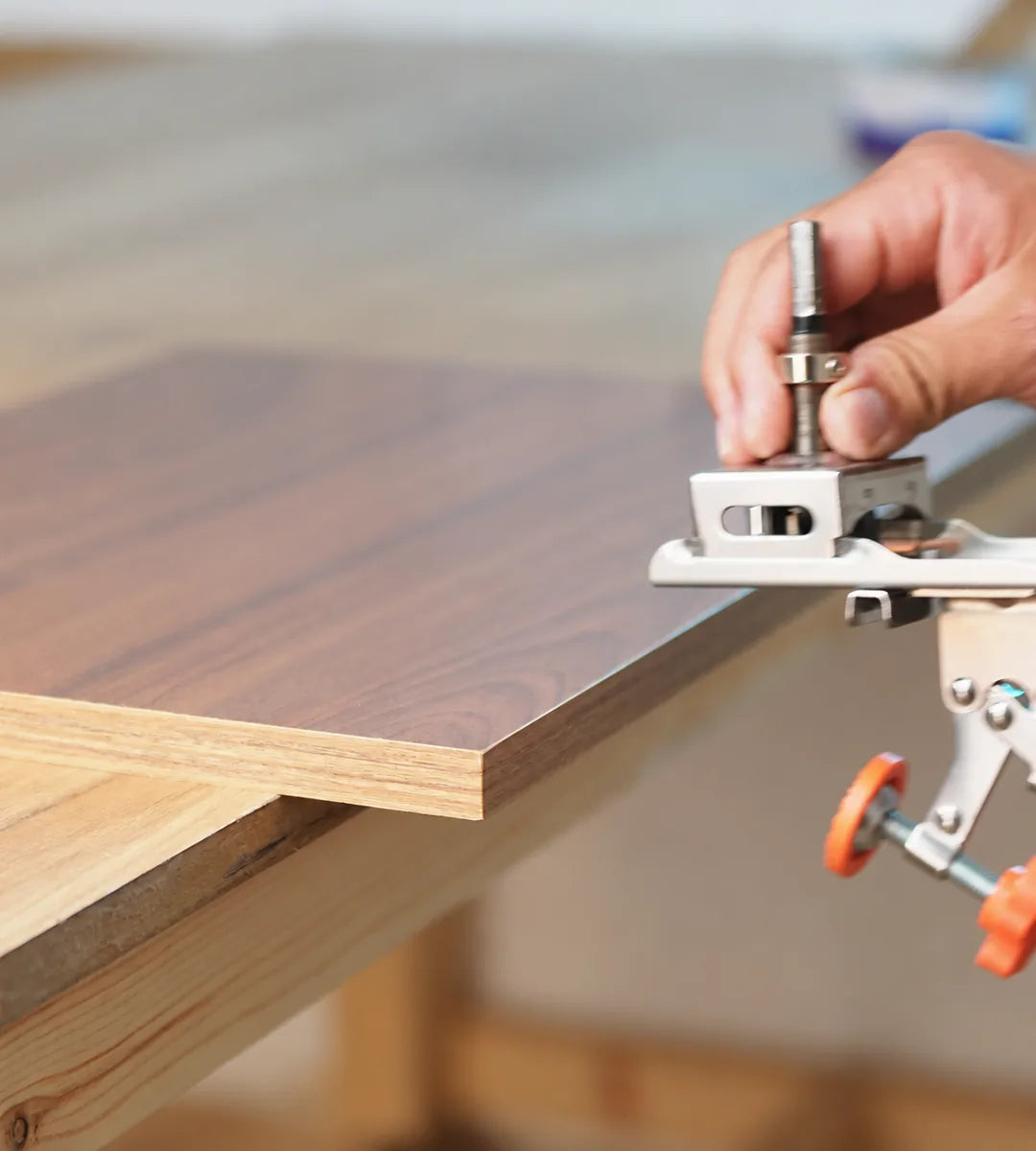

Set depth before drilling
Cup depth depends on the hinge and panel thickness. Set the stop collar and test on matching scrap to avoid drilling through the door.
Get set up in four steps
- Check the hinge specifies a 35mm cup and confirm its required offset.

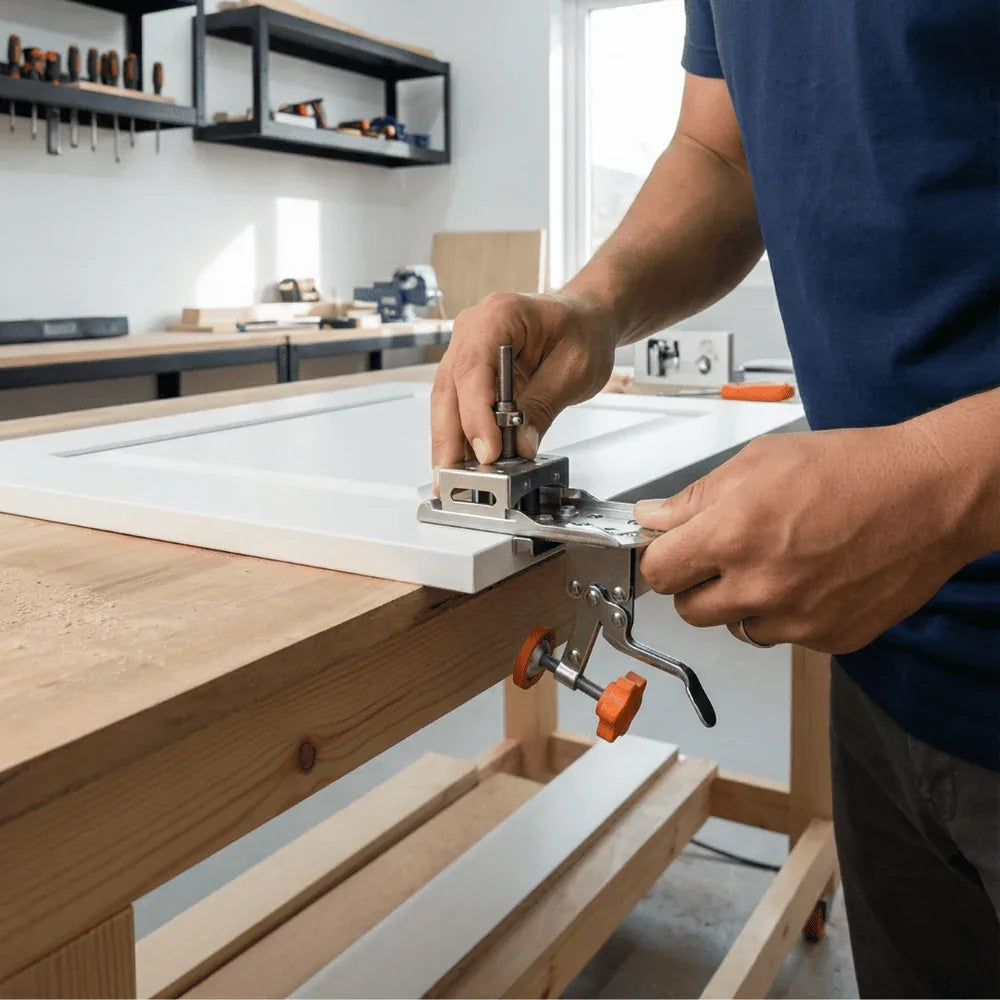

- Clamp the jig firmly to the cabinet door.

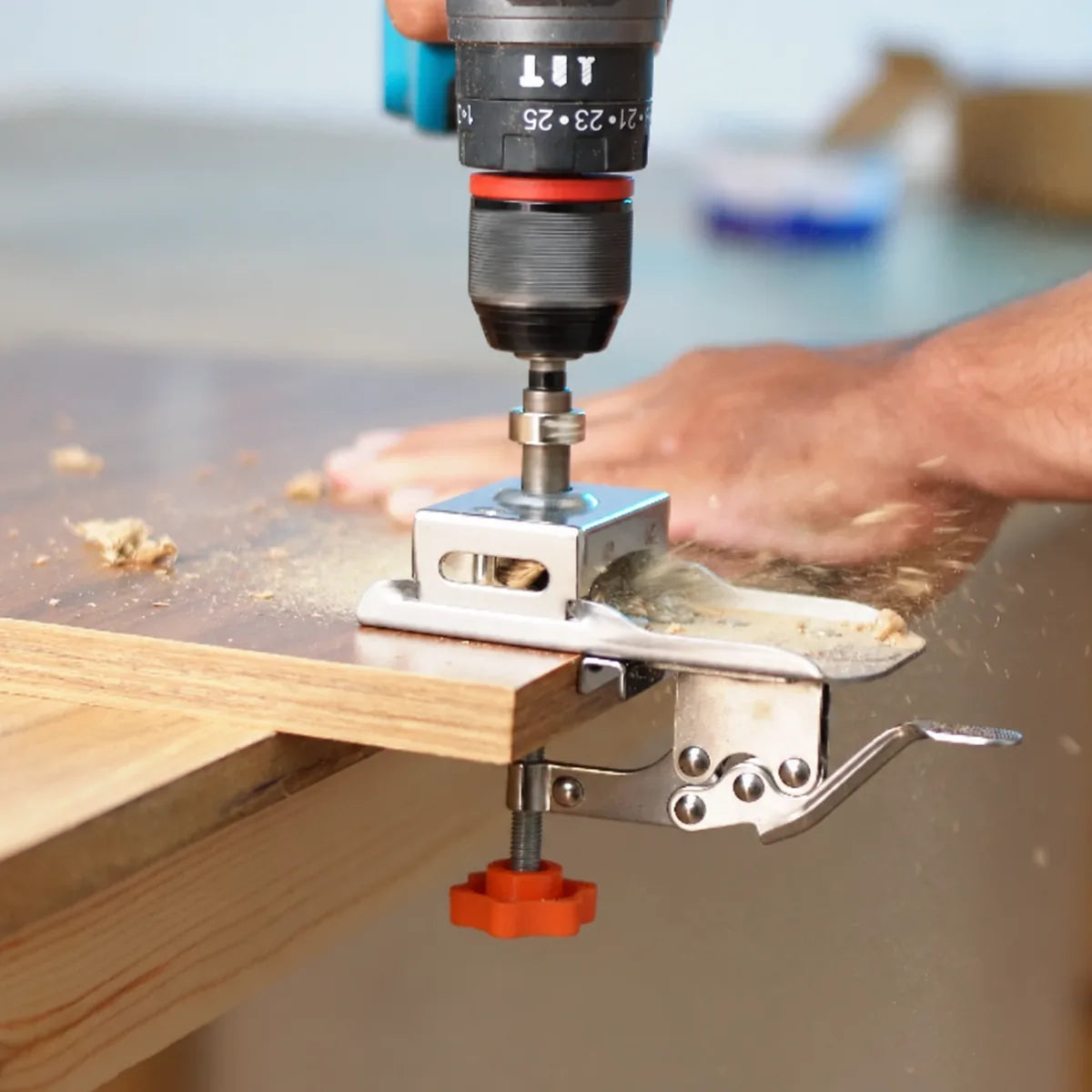

- Set the cutter depth, then drill the cup and screw guide holes.
- Remove the jig, check the fit and install the hinge.
Know your tool
| Application | 35mm European-style concealed cabinet hinges |
|---|---|
| Operation | Compatible hand drill required |
| Guide | Cup hole and two screw positions |
| Kit contents | Jig, cutter, small drill bit, stop collar, wrench and hex key |
WHERE IT FITS
For cabinet doors, furniture doors and workshop projects
Useful when preparing compatible concealed-hinge holes in a new cabinet door. If replacing an old hinge, check existing holes, panel condition and hardware geometry before drilling again.
Application images illustrate tool use. Workpieces and power tools are not included.
WHAT YOU RECEIVE
Know what is in the kit

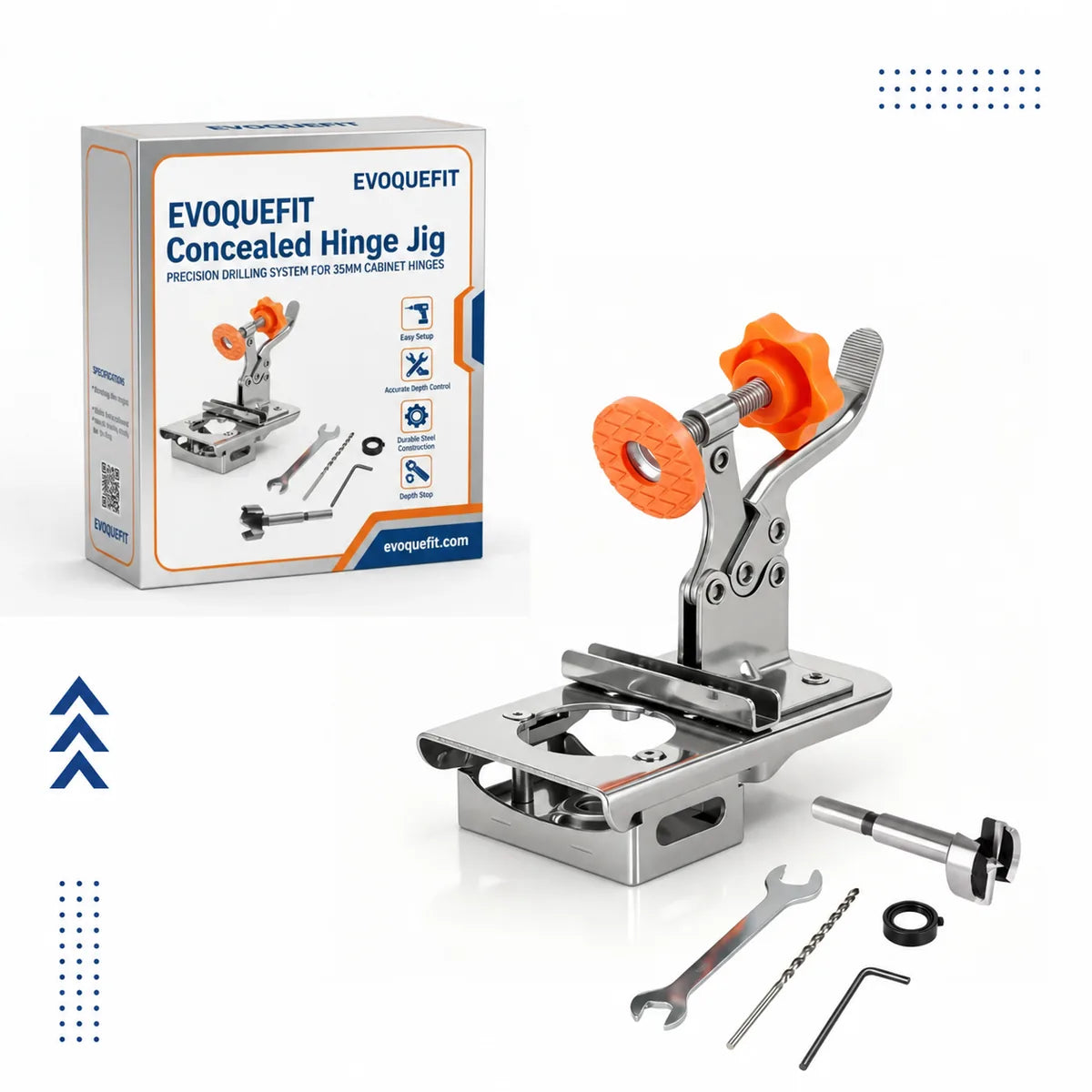

The kit includes the jig, 35mm cutter, small drill bit, stop collar, wrench and hex key. The drill, door, hinge and mounting screws are separate project items.
Before the first job
Check the parts, confirm compatibility with your project and make a controlled test before working on the finished piece.
Questions before you start
Does it fit every concealed hinge?
No. Check the 35mm cup size, screw spacing, offset and depth. Brand names alone do not establish compatibility.
Should I remove the clamp after drilling the cup?
Keep the setup clamped while drilling compatible screw-guide holes. Remove it only after the guided drilling sequence is complete.
How can I avoid drilling through a thin door?
Verify panel thickness and the hinge's required cup depth, set the depth stop and make a test hole in matching scrap first.
What should I check before starting?
Check door thickness, cup depth and backset against your actual hinge instructions. Not every hinge uses the same drilling pattern. Wear eye protection and follow the instructions for your power tool.
