Adjust the pencil position
Slide the pencil carrier to establish the offset you need, then lock it before tracing. A moving pencil can change the line midway through a pass.
EVOQUEFIT • WORKSHOP ESSENTIALS

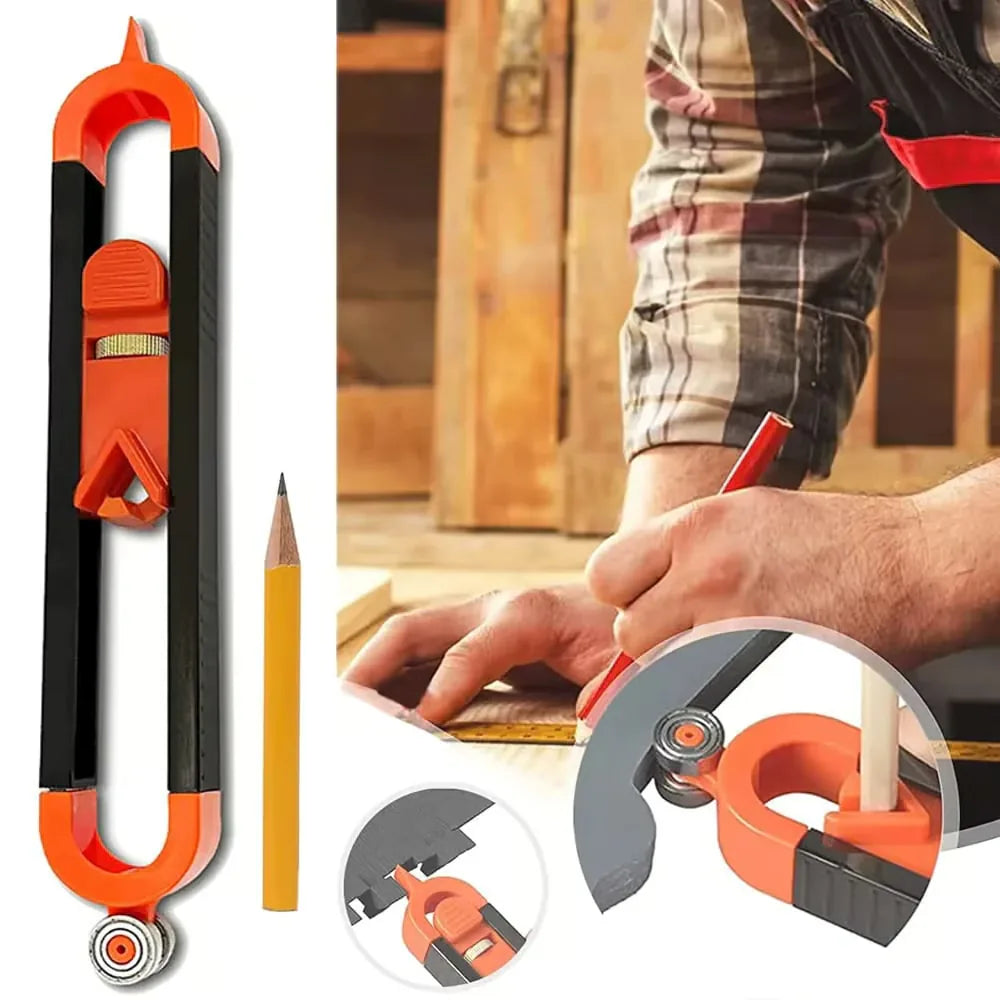

Transfer an uneven edge onto your workpiece before cutting.
This is a marking tool. Cutting requires a separate suitable tool. Check the pencil is firmly held and maintain the same angle while tracing.
DESIGNED AROUND THE TASK
Bring the contour to the pencil line
Uneven edges can be difficult to measure point by point. A scribing tool lets you follow the reference surface while the pencil transfers its shape onto your workpiece. The adjustable pencil carrier and two guide ends make the setup easier to match to the edge you are tracing.

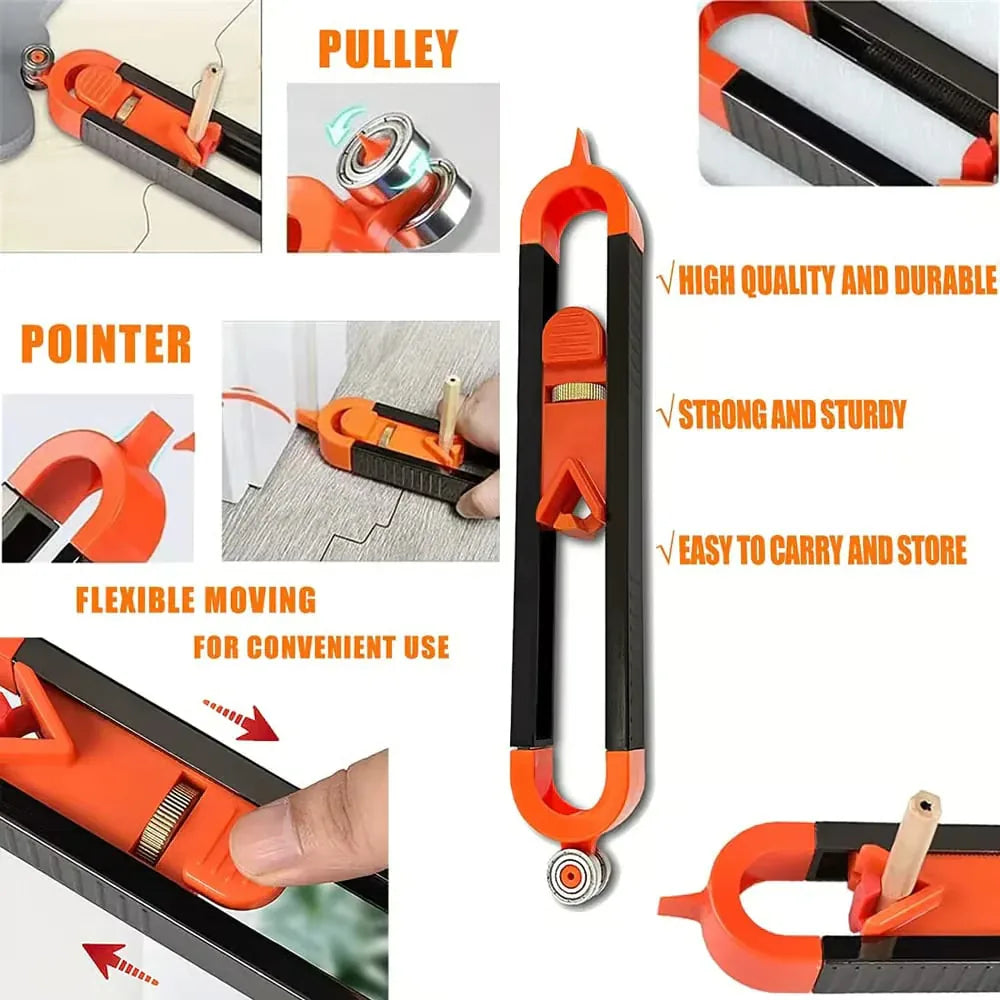

Follow with the wheel
The wheel end can roll along a suitable edge while the pencil marks the adjacent surface. Keep the tool angle consistent throughout the pass.
Reach with the pointer
Use the pointer end where its shape fits the reference contour better. Check that it can follow the entire path without catching.
Lock, trace and check
Tighten the pencil lock, try the movement on an offcut and confirm the line before making a permanent cut.

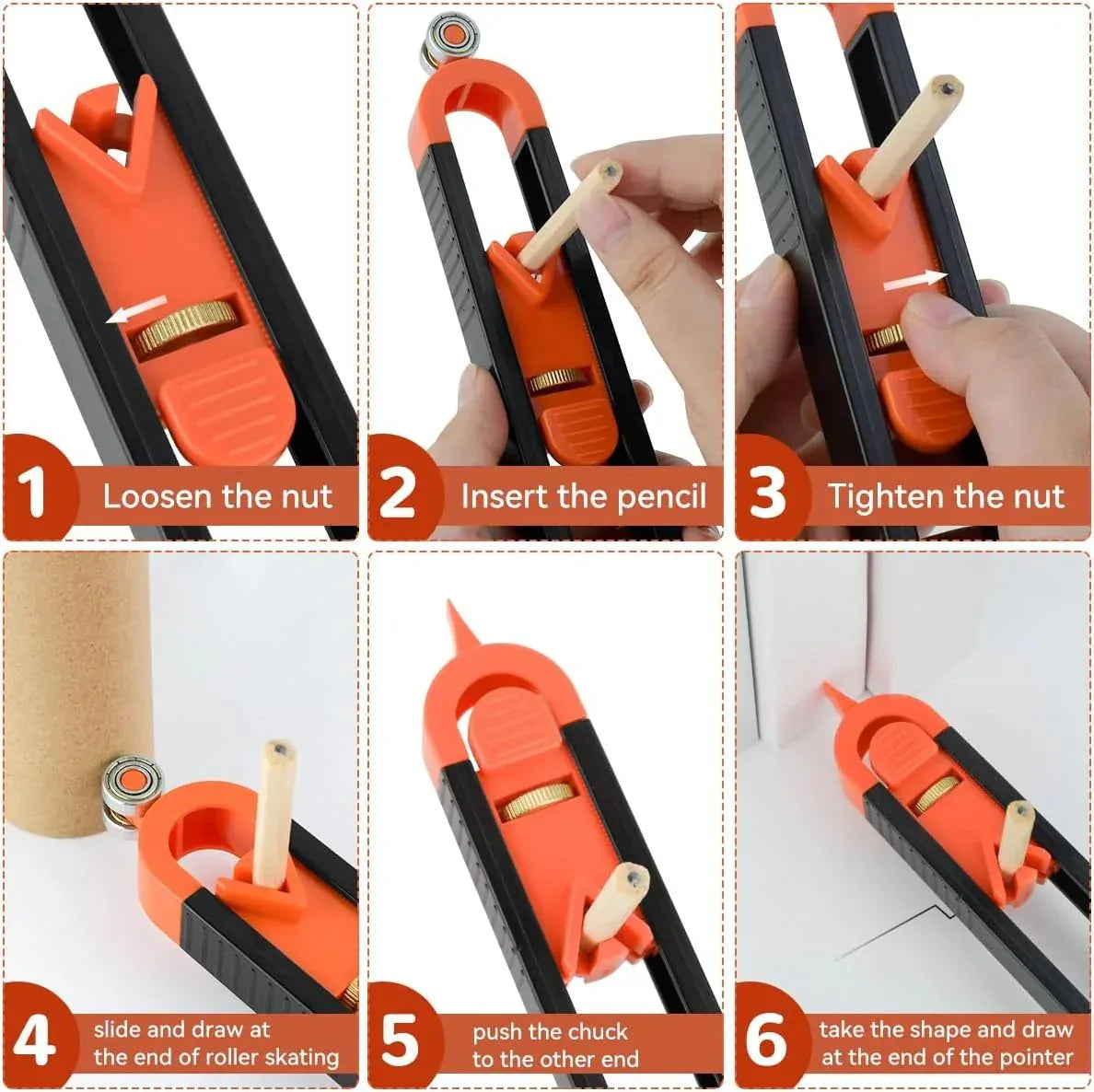

Get set up in four steps

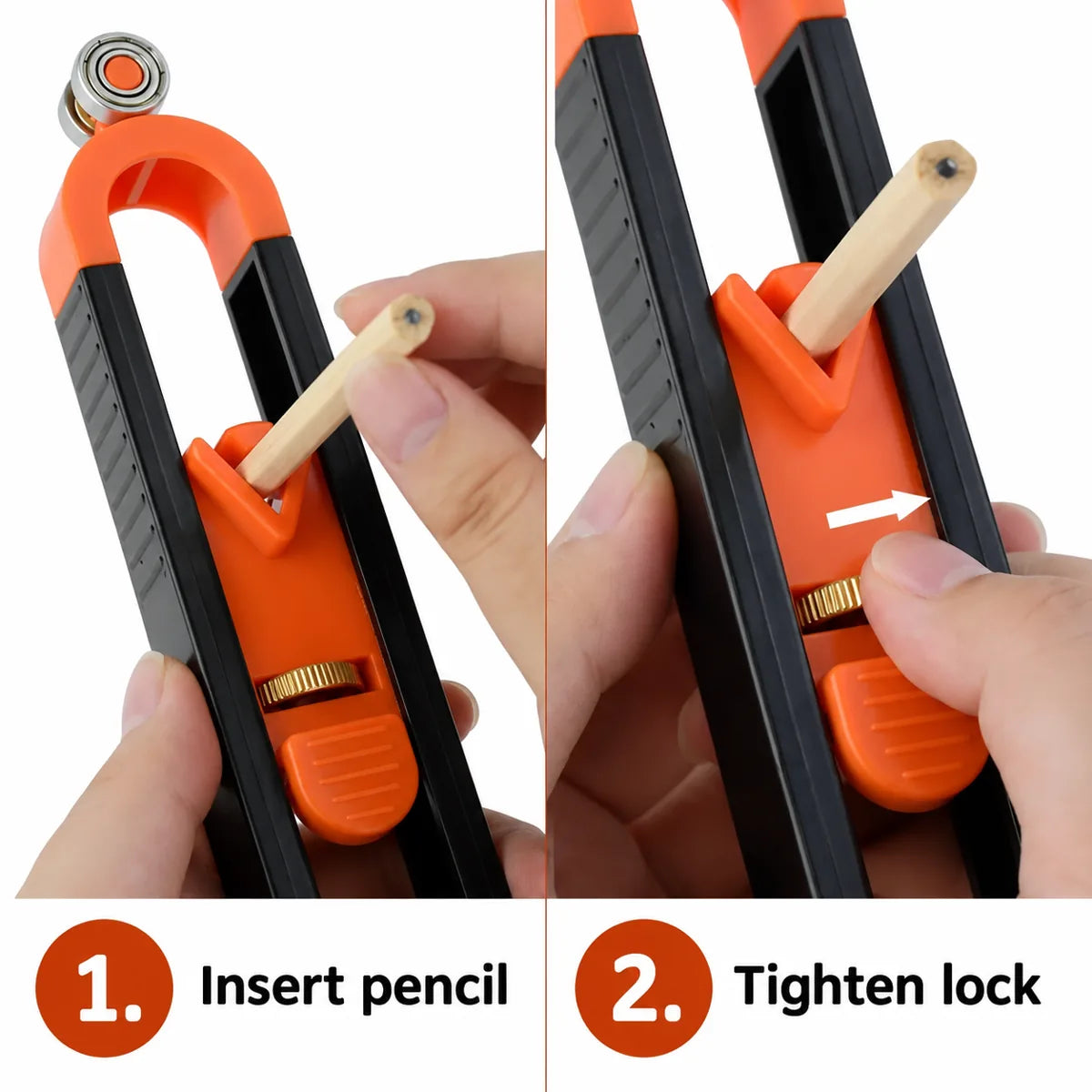

- Loosen the pencil lock and insert a suitable pencil.
- Set the tracing offset and tighten the adjustment.
- Keep the guide against the edge and trace steadily.
- Test on an offcut, then check the marked line before cutting.

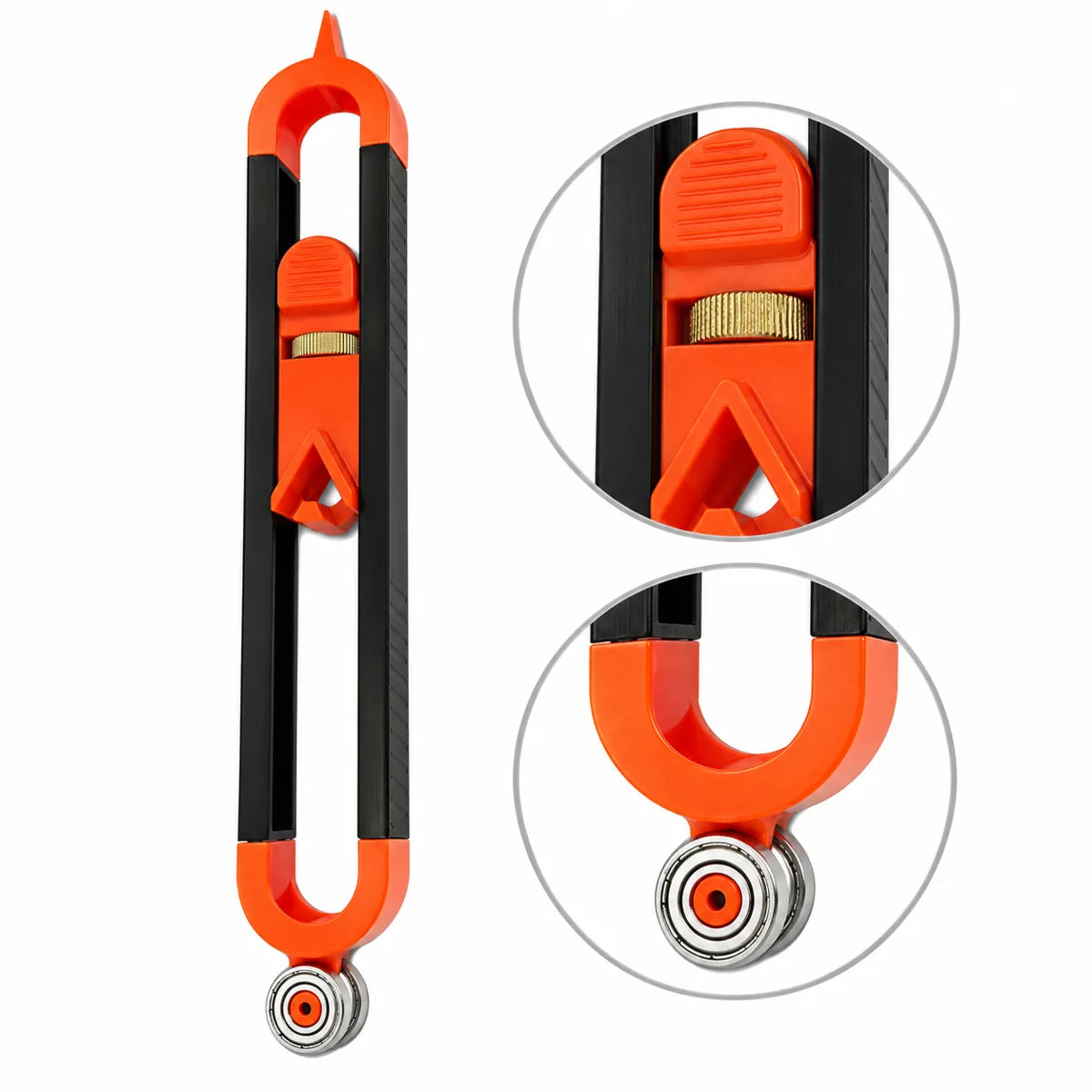

Know your tool
| Function | Contour tracing and offset marking |
|---|---|
| Adjustment | Sliding guide with pencil lock |
| Guide surfaces | Wheel and pointer |
| Purchase option | One tool |
WHERE IT FITS
For fitting trim, panels and flooring edges
Use it to mark around an uneven edge or transfer a profile during a fitting project. Access, pencil reach and surface shape determine which guide end works best. It marks a line; it does not cut or measure an internal angle.
Application images illustrate tool use. Workpieces and power tools are not included.
WHAT YOU RECEIVE
Know what is in the kit
One adjustable scribing tool with pencil-lock mechanism. A pencil is shown in the reference images. Check your preferred pencil fits the holder securely before starting the job.
Before the first job
Check the parts, confirm compatibility with your project and make a controlled test before working on the finished piece.
Questions before you start
Is this a cutting tool?
No. It transfers a contour as a pencil line. Use an appropriate separate cutting tool and check the fit gradually.
Why does my line change as I move?
Check whether the pencil carrier is loose or the tool angle is changing. Maintain steady guide contact and test the setup on scrap.
Which end should I use?
Choose the wheel or pointer according to the access and contour. Try the movement along the full edge before marking the workpiece.
What should I check before starting?
This is a marking tool. Cutting requires a separate suitable tool. Check the pencil is firmly held and maintain the same angle while tracing. Wear eye protection and follow the instructions for your power tool.
