Magnetic guidance
Pair the external trolley with the hidden magnetic leader to control its path from outside the cavity.
EVOQUEFIT • WORKSHOP ESSENTIALS

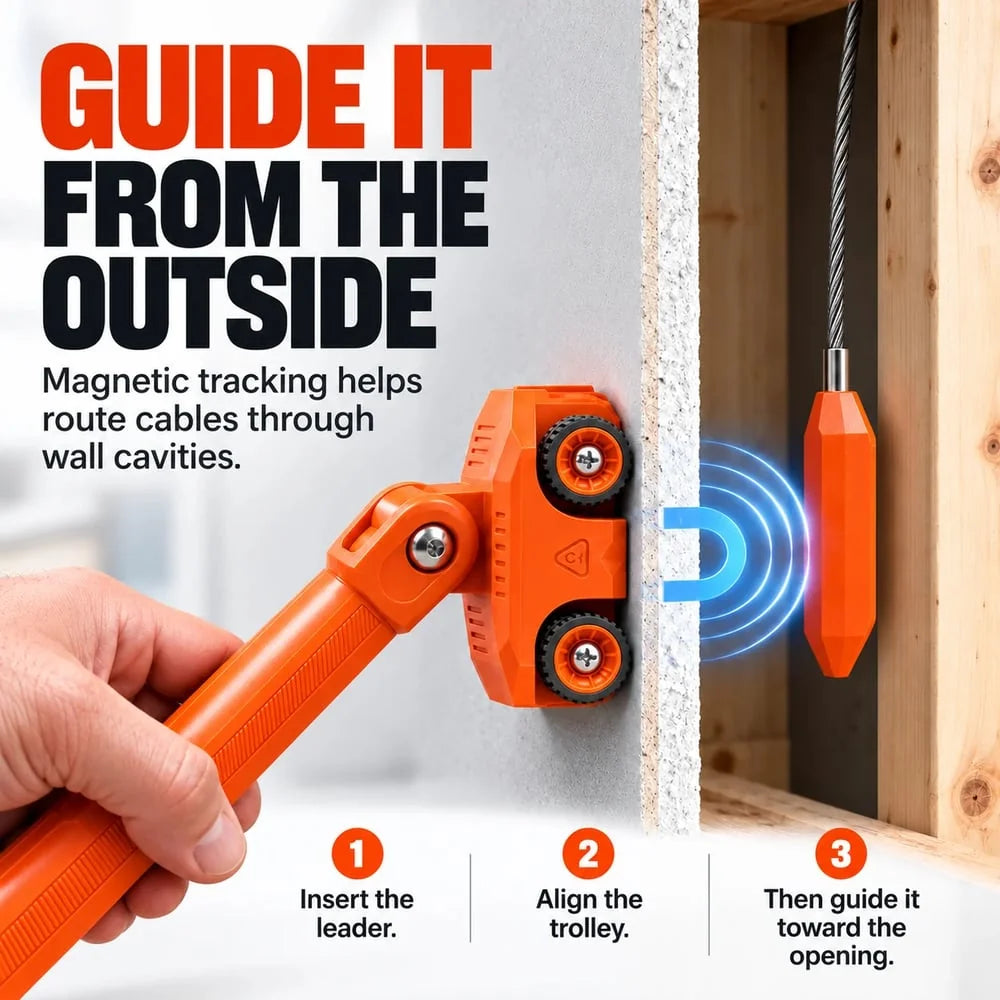

Guide the hidden cable. Take control of the route.
Move the magnetic trolley along the outside of a suitable wall to guide the leader and attached cable toward an exit opening. Four rolling wheels and a pivoting handle help keep the movement steady.
Check the route before starting
A clear cavity and suitable entry and exit openings are required. The tool cannot travel through studs, fire blocks or solid barriers. Wall material, thickness and obstructions affect magnetic coupling; test on your wall first.
Designed for a more controlled pull
Four-wheel movement
Roll slowly over a clean, suitable surface. Test a discreet area first and avoid dragging grit across finished walls.
Pivoting handle
Adjust the handle angle to help maintain a comfortable grip while guiding the trolley.
Organized storage
Keep the trolley and leader together in the included hard case and drawstring pouch between projects.
GET STARTED

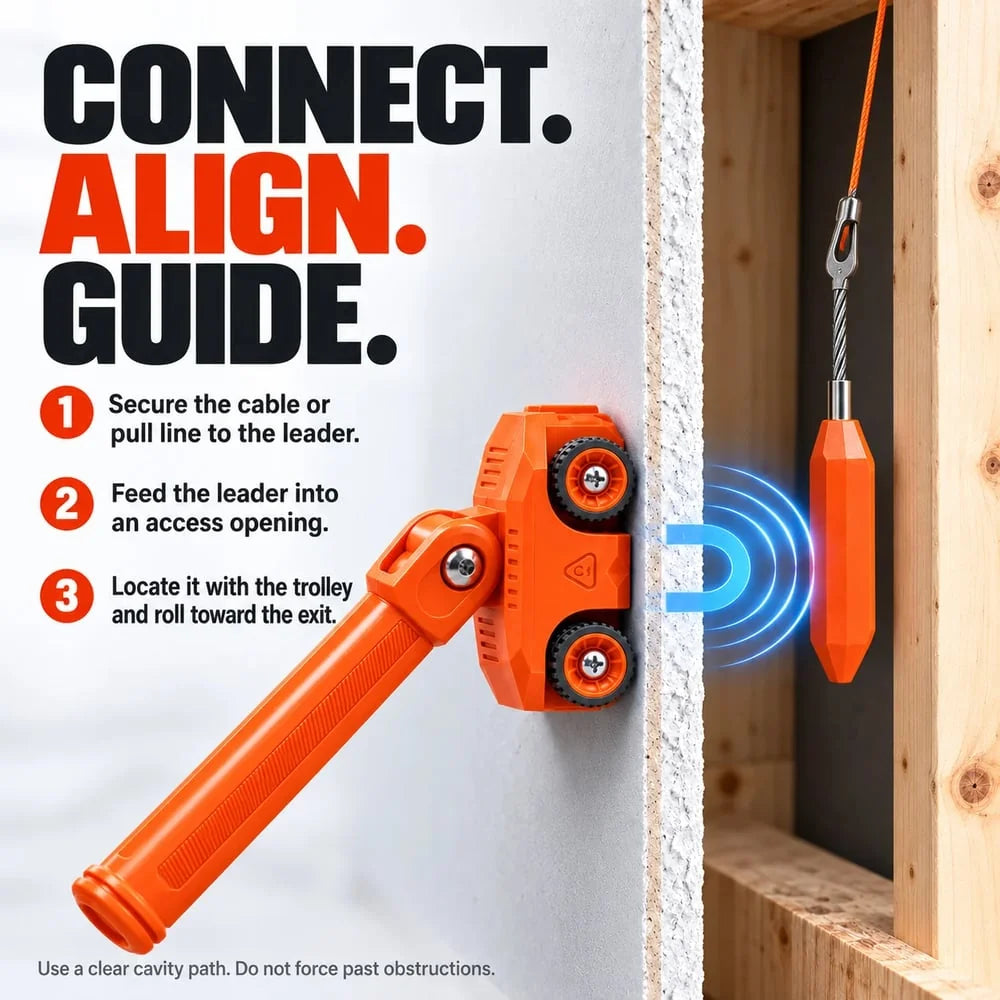

Connect. Align. Guide.
- Confirm a clear cavity route and suitable access openings; check for hidden services and isolate power near wiring.
- Secure the cable or pull line to the leader as directed in the supplied instructions, then feed it into the entry opening.
- Align the trolley outside the wall with the leader inside. Check that the magnetic connection holds before moving.
- Roll slowly toward the exit, retrieve the leader, then pull gently. Stop if you meet resistance rather than forcing the cable.

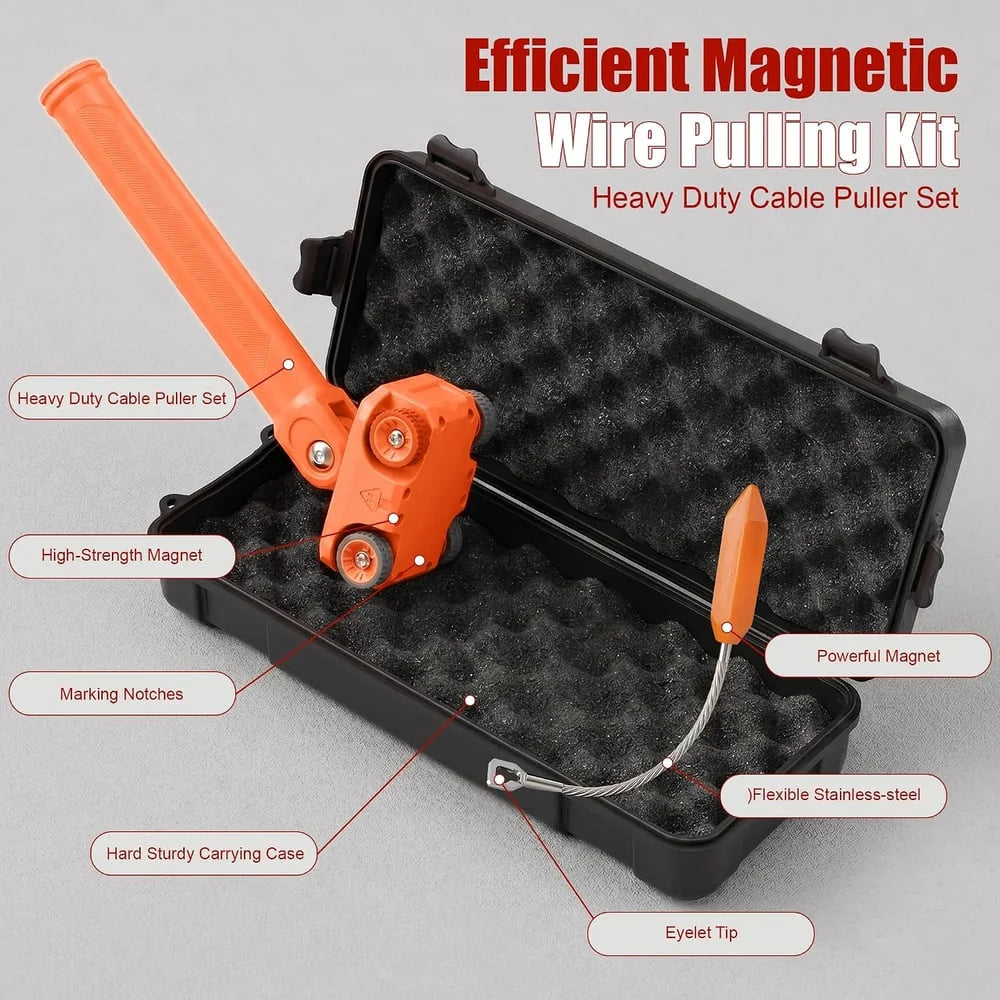

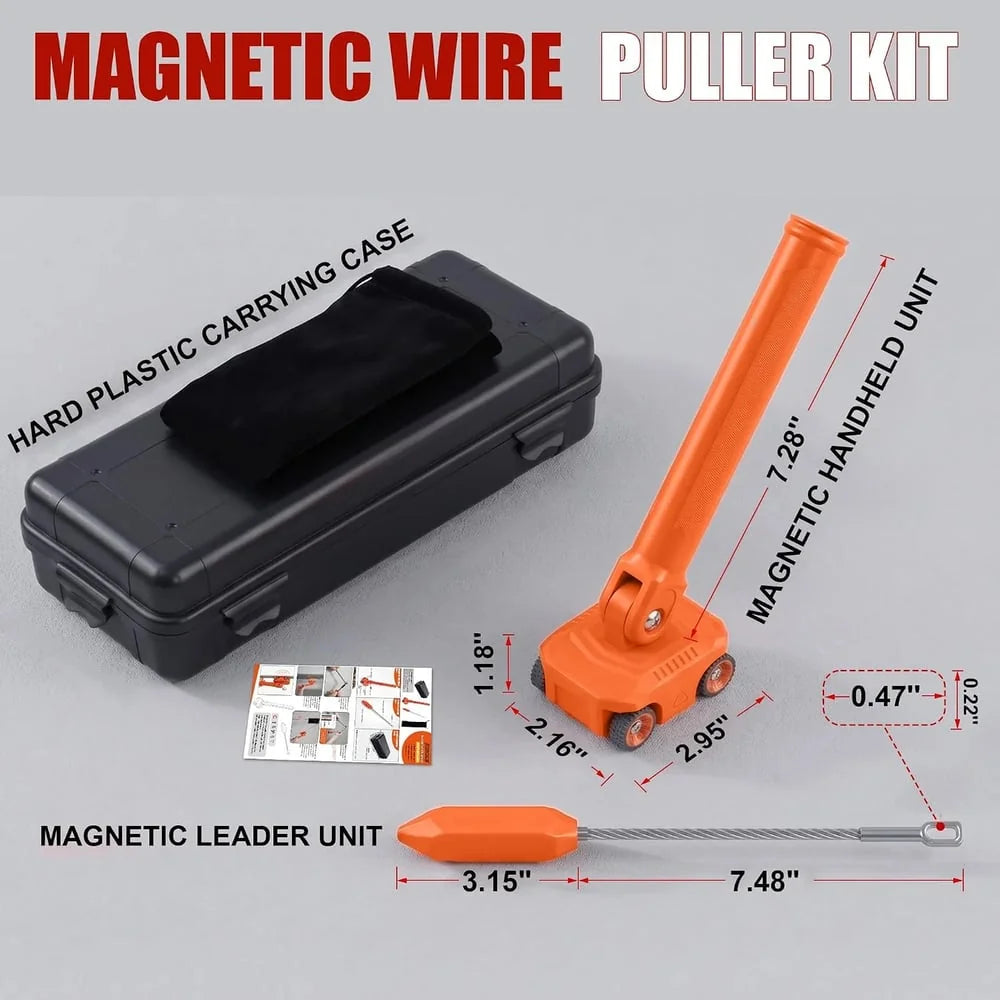

Know your kit
| Primary function | Magnetic cable routing through suitable open cavities |
|---|---|
| Trolley | Four rolling wheels with pivoting handle |
| Secondary function | Locate compatible metal fixings along studs; marking notches assist position marking |
| Cable applications | Compatible Ethernet, speaker, low-voltage and electrical cable routes |
| Storage | Hard carrying case and velvet drawstring pouch |
PUT IT TO WORK
From home networking to renovation projects
Plan compatible Ethernet runs, speaker-wire installation and other cable routes where the cavity is accessible. Ceiling cavities may also be suitable when access and construction allow. Electrical installations must follow applicable requirements and should be handled by a qualified installer where required.
Magnetic stud location detects metal fixings, not wood. Confirm the location with an appropriate method and check for hidden wiring or pipes before drilling. Keep strong magnets away from medical implants, sensitive electronics and children.

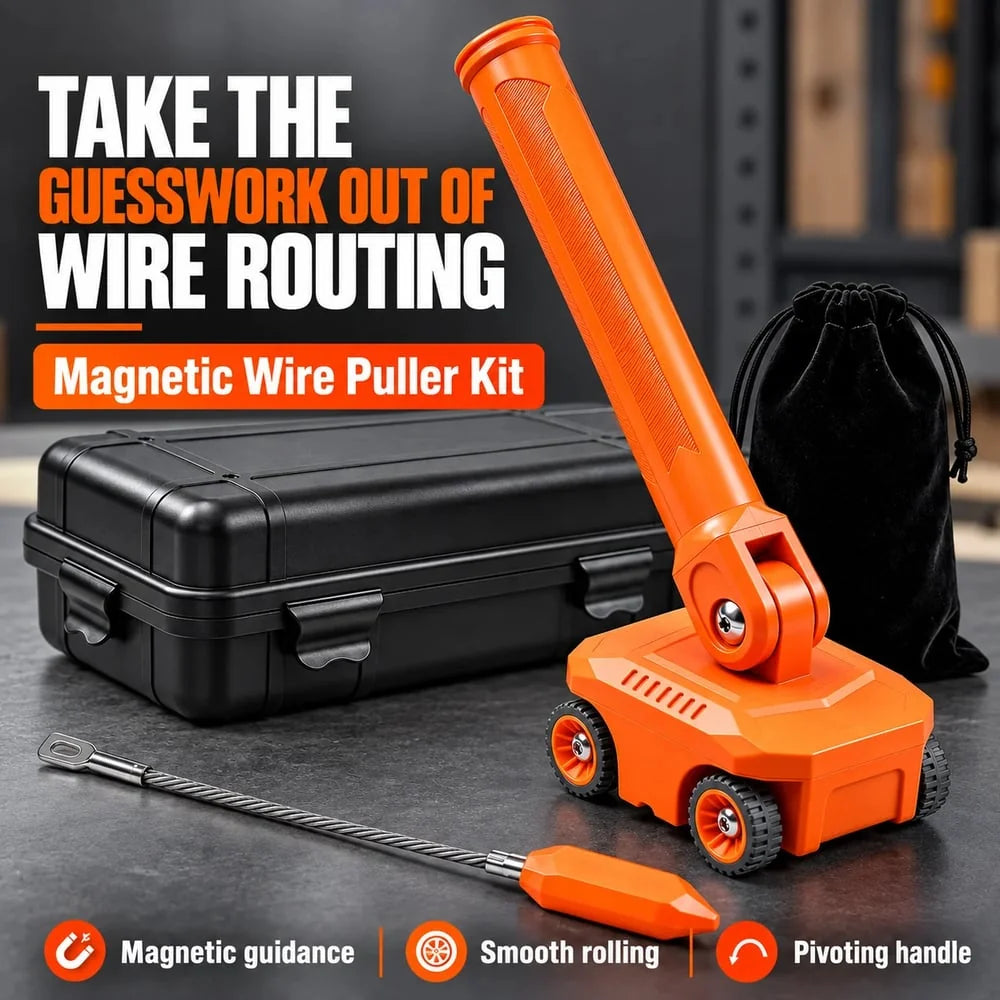

WHAT YOU RECEIVE
One organized kit
Magnetic trolley with four wheels and pivoting handle, magnetic cable leader, hard protective carrying case and velvet drawstring storage pouch. Cables, building materials and demonstration workpieces are not included.
Questions before you start
Does it work through every wall?
No. Material, thickness, insulation, metal framing and other obstructions affect the connection. Test the intended surface and route before installing.
Do I still need entry and exit openings?
Yes. The leader and cable need suitable access at both ends. The magnets do not eliminate the need for access openings.
Can it pass through a stud or fire block?
No. It needs a clear cavity route and cannot pull through solid barriers. Stop at an obstruction and reassess the route.
How does the stud-finding function work?
It helps find metal fasteners along studs and provides marking notches. It does not directly detect wood or verify that a drilling point is clear of services.
Are the case and pouch included?
Yes, both are included with the trolley and magnetic leader.
Need help with compatibility or setup? support@evoquefit.com. Delivery and returns follow EVOQUEFIT store policies.
