Inductive Wood Moisture Meter

Product Specific Presentation Instructions

Key Components:

• 2.4-inch High-Definition Color Screen - Clear and vivid display
• Inductive Sensor (40.5x40.5mm) - Non-contact measurement technology
• 1000mAh Lithium Battery - Long-lasting power supply
• Built-in Flashlight - Low-light condition support
• USB Data Cable - Data transfer and charging
• Temperature Display System - Environmental monitoring
• Sound and Color Alarm - Alert notification system

---

✨ Key Features

🔍 High-Precision Measurements - 0.1% resolution with ±1.5% accuracy

📱 2.4-inch Color Display - Clear, vivid screen for easy reading

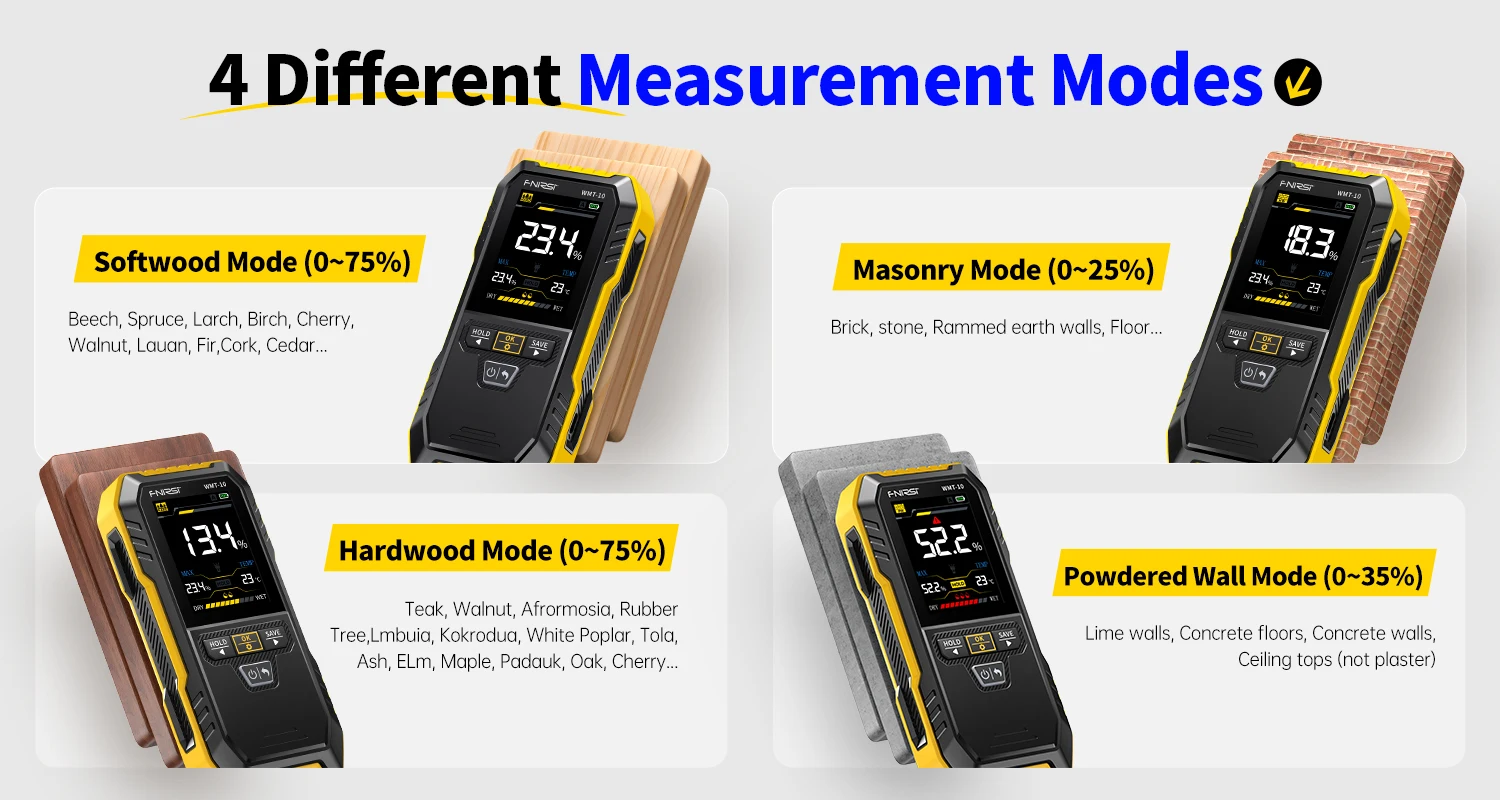

🏠 Four Measurement Modes - Hardwood, softwood, plaster wall, and brick wall

🔋 Long Battery Life - 1000mAh lithium battery with auto power-off

💾 Data Storage - Save and view up to 30 sets of measurement data

---

Our Moisture Meter is Your Professional Solution

The Inductive Wood Moisture Meter is equipped with a 2.4-inch high-definition color screen, designed specifically to meet the needs of the wood processing industry and wood users. This advanced tool ensures accurate measurement of wood moisture content, supporting four distinct measurement modes: hardwood, softwood, plaster wall, and brick wall.

---

🔧 HIGH-PRECISION MEASUREMENTS

Advanced Inductive Technology

The Inductive Wood Moisture Meter provides high-accuracy moisture detection with a resolution of 0.1%, ensuring precise readings for various materials. It covers a broad range of measurement depths, up to 17mm.

Key Benefits:

• 🎯 Non-destructive/Pinless/Inductive/Non-contact testing
• 📏 Maximum measuring depth: 17mm
• 🔍 Display resolution: 0.1%
• ⚡ Measurement error: ±1.5%

---

📊 WIDE MEASUREMENT RANGE

Comprehensive Coverage

This moisture meter supports a comprehensive measurement range from 0% to 75%, making it versatile for different applications:

Material-Specific Ranges:

• 🏠 Plaster Wall: 0-25%
• 🧱 Brick Wall: 0-43%
• 🌲 Softwood: 0-75%
• 🌳 Hardwood: 0-75%

Operating temperature range: 0~40℃

---

📱 USER-FRIENDLY DISPLAY & FEATURES

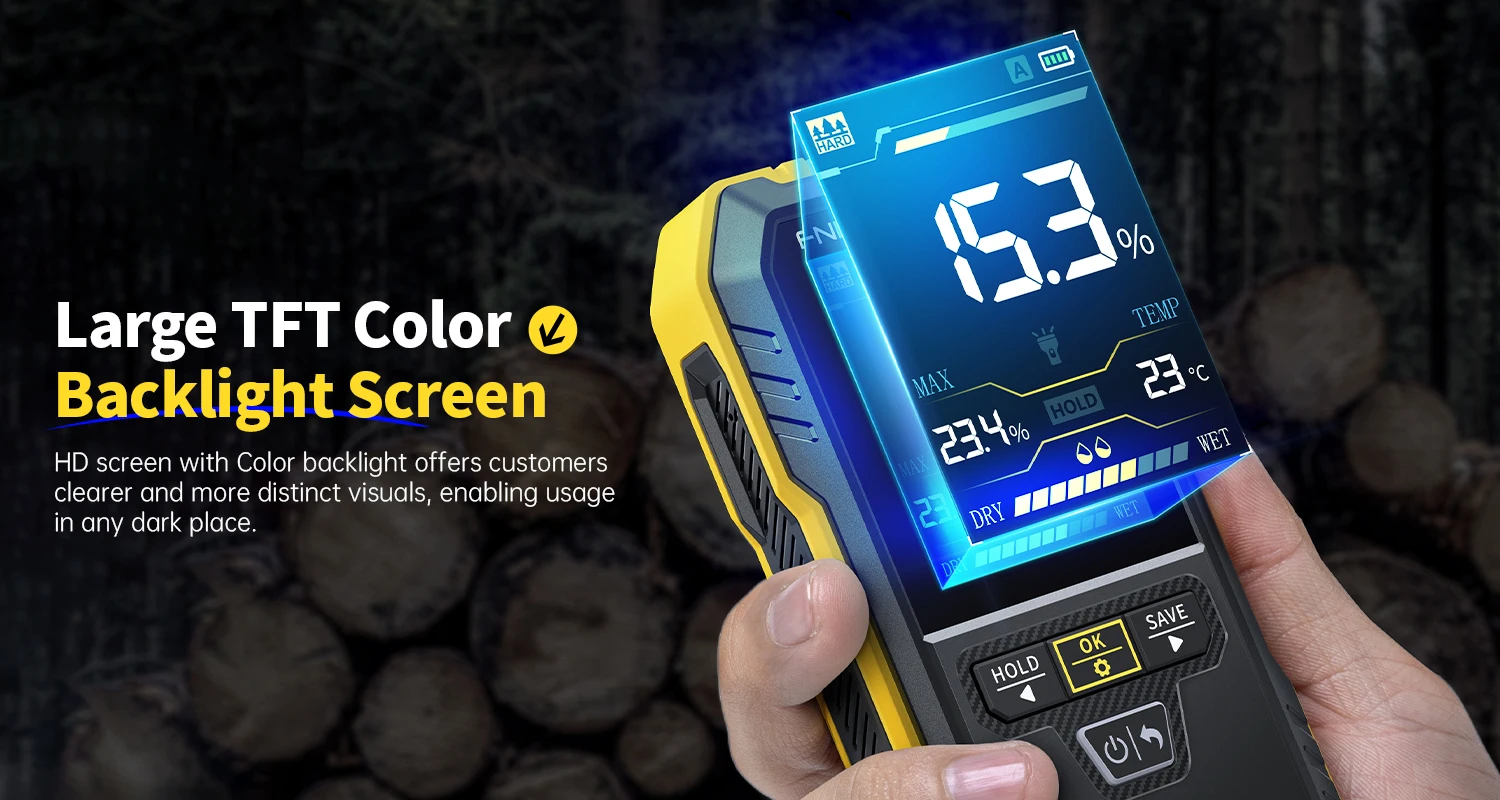

2.4-inch Color Screen

The color screen offers a clear and vivid display, making it easy to read and interpret measurement results.

Smart Features:

• 🔊 Sound and color alarm system

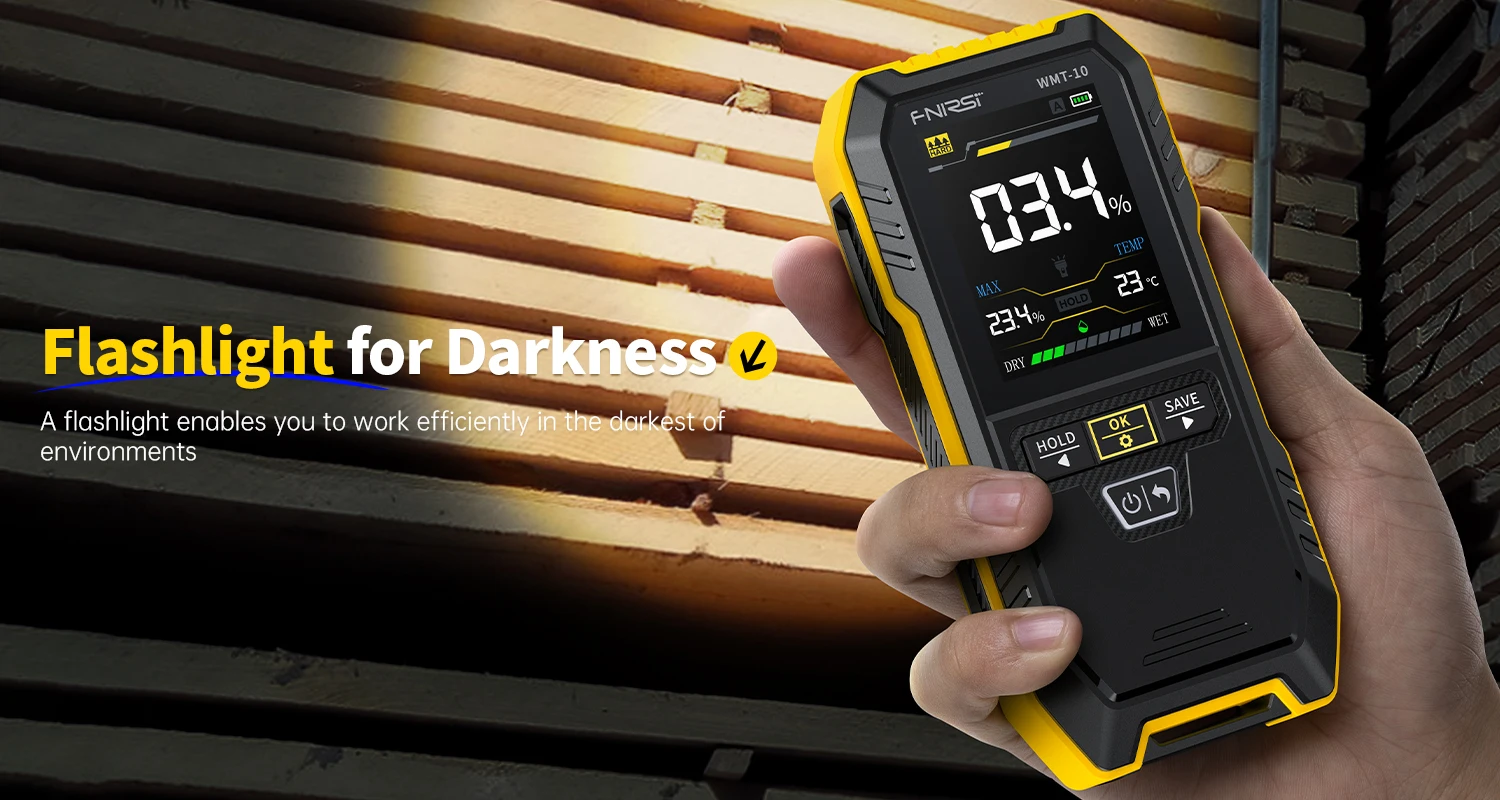

• 💡 Built-in flashlight function
• 🌡️ Temperature display support
• 🔆 Brightness and sound adjustment
• 🔄 Firmware upgrade support

---

🚨 ADVANCED ALARM SYSTEM

Smart Alert Technology

Stay alert with sound and color alarms that notify you when moisture levels exceed safe thresholds, protecting your materials from potential damage.

Alarm Features:

• 🔔 Sound alarm notification
• 🚨 Color-coded visual alerts
• ⚠️ Customizable threshold settings
• 🛡️ Material protection alerts

---

💾 DATA STORAGE & MANAGEMENT

Convenient Data Handling

Save and review up to 30 sets of measurement data directly on the device, providing a convenient way to manage and analyze your moisture readings over time.

Data Features:

• 📊 Store up to 30 measurement sets
• 📈 Historical data viewing
• 💻 USB data transfer capability
• 📋 Easy data management

---

🔋 DURABLE DESIGN & POWER

Long-Lasting Performance

Powered by a 1000mAh lithium battery, the Inductive Wood Moisture Meter offers long-lasting performance with convenient power management.

Power Features:

• 🔋 1000mAh lithium battery
• ⏰ Auto power-off: 5/10/15 minutes
• 🔌 USB charging capability
• 💡 Flashlight for low-light conditions

---

🛠️ TECHNICAL SPECIFICATIONS

Complete Specifications:

Display & Interface:

• 📱 2.4-inch color screen
• 🌍 Languages: Chinese, English
• 🔆 Adjustable brightness and sound

Measurement Capabilities:

• 📏 Sensor size: 40.5x40.5mm
• 🎯 Max measuring depth: 17mm
• 📊 Measurement range: 0~75%
• ⚡ Resolution: 0.1%

Additional Features:

• 🌡️ Temperature display
• 💡 Built-in flashlight
• 🔄 Firmware upgrade support
• 💾 Data storage: 30 sets

---

📦 COMPLETE PACKAGE INCLUDED

What's in the Box:

• 🔍 1x Inductive Wood Moisture Meter
• 🔌 1x USB Data Cable
• 📖 1x User Manual

---

🚫 SAY GOODBYE TO DESTRUCTIVE TESTING

Forget about:

• 🔨 Destructive pin-type meters that damage materials
• 📏 Limited measurement depth capabilities
• 🔋 Short battery life and frequent charging
• 📱 Difficult-to-read displays
• 💾 Lost measurement data
• ⚠️ Missing critical moisture alerts

Now there's a better way: A professional-grade non-contact moisture meter that delivers accurate results without damaging your materials!

With advanced inductive technology and comprehensive data management, it's perfect for wood processing, construction, and quality control — all with the precision and reliability professionals demand!
